M1911 A1 Drawings
by Roy Seifert


Click here to purchase a CD with this and all Kitchen Table Gunsmith Articles.



Disclaimer:  This article is for entertainment only and is not to be used in lieu of a qualified gunsmith.  Please defer all firearms work to a qualified gunsmith.  Any loads mentioned in this article are my loads for my guns and have been carefully worked up using established guidelines and special tools.  The author assumes no responsibility or liability for use of these loads, or use or misuse of this article.  Please note that I am not a professional gunsmith, just a shooting enthusiast and hobbyist, as well as a tinkerer.  This article explains work that I performed to my guns without the assistance of a qualified gunsmith.  Some procedures described in this article require special tools and cannot/should not be performed without them.

Warning:  Disassembling and tinkering with your firearm may void the warranty.  I claim no responsibility for use or misuse of this article.  Again, this article is for entertainment purposes only!

Tools and firearms are the trademark/service mark or registered trademark of their respective manufacturers.

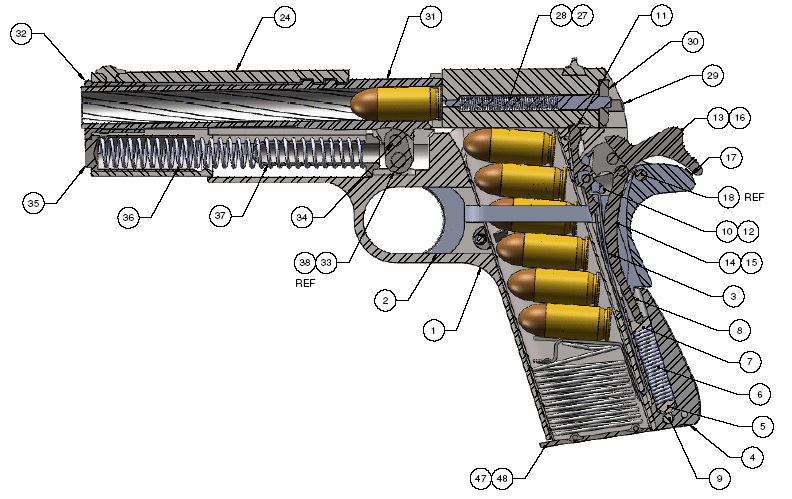

M1911 A1 Drawings
Rio Benson of Benson Consulting, LLP took all of the M1911 A1 drawings he could find and created updated versions of them.  He has provided them with the understanding that the documentation may be published and distributed freely as a complete package, without charge, provided nothing is altered in any way. Furthermore, the writing on page 2 is an integral part of the package and must accompany it in any of its published forms.  These drawings are in PDF format and are a little under 5Mb in size.

I have used these drawings to fabricate parts or confirm measurements, as well as the two M1911 shop manuals by Jerry Kuhnhausen.  You can click on the heading above or the link below to download Mr. Bensonís drawings.

http://www.ktgunsmith.com/other/M1911-A1_Prints.pdf






   © Copyright 2014 Roy Seifert.
